ユーザー様が認める優れた品質
河南信義アルミニウムは、アルミニウムコイル・ストリップ
(アルミ条)の生産メーカーとして、世界に各種のアルミニ
ウムコイルを長年にわたって提供してきました。

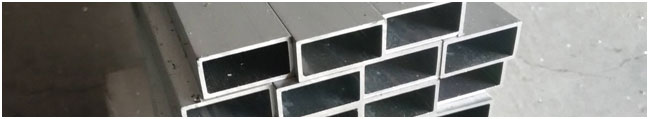

アルミ四角・スクエアパイプ押出形材NO.1
お問合せ
Mobile:86 17344894490
Email:service@signialuminium.com
Skype:signialuminium
WhatsApp:: 86 17344894490
アドレス:No.89 Science Avenue,National HI-Tech Industry Development Zone,Zhengzhou,Henan
アルミ四角・スクエアパイプ押出形材NO.1
アルミ四角・スクエアパイプ押出形材NO.1
2017-07-12 14:45
アルミ押出形材


アルミ四角・スクエアパイプ押出形材NO.1

Mould No. A(mm) B(mm) Wall Thickness(mm) Line Density(Kg/m) Extrusion Capacity R Angle
CHALCO_A000483 15 15 2 0.281 500
CHALCO_A000804 15 15 1 0.151 500
CHALCO_D009661 15.875 15.875 1.14 0.179 500 Have
XSS-414 12 18 1.0 0.149 500T Have Angle R,But wall thickness minus tolerance
JT-508500 18 18 2.0 0.346 660T
XSS-414 12 18 1 0.149 500T R1.0
ALS_D000029 19 19 1.2 0.229 500 Have
TF-01 19 19 1.00/
TF-162 19 19 1.2 0.229
CHALCOGYC-912 19 19 3.5 0.586  880T
ALD_D001817 19.05 19.05 1.83 0.34 660T Have
LZP_D000001 19.05 19.05 2.41 0.417 660T R2.79
CHALCO_D000561 19.05 19.05 1.65 0.311
CHALCO_D000848 19.05 19.05 3.18 0.543
CHALCO_D001786 19.05 19.05 2.41 0.416
CHALCO_D004780 19.05 19.05 1.40 0.258
CHALCO_D005057 19.05 19.05 1.27 0.244 500
CHALCO_D005804 19.05 19.05 1.59 0.299 660T
CHALCO_DOO0561 19.05 19.05 1.65 0.311
CHALCO_DOO0848 19.05 19.05 3.18 0.543
CHALCO_DOO5057 19.05 19.05 1.27 0.244
CHALCO_A000861 19.05 19.05 1.63 0.306 660T
CHALCOGYC-1806 19.1 19.1 1.7 0.299  500T  Have
SYLM-23 19.6 19.6 2 0.38  660T
CCNZ-73 8 20 2.0 0.259 500
CHALCO_A000395 10 20 2.0 0.281
CHALCO_A000539 10 20 1.5 0.219 500
CHALCO_AOOO395 10 20 2 0.281 500
CHALCO_AOOO539 10 20 1.5 0.219
CHALCO_A000537 15 20 2 0.335 500
CHALCO_AOOO537 15 20 2.0 0.335
TF-175 15 20 1.2 0.211
CHALCOGYC-1616 15 20 2 0.335 660T
TF-154 18 20 1.5 0.284
ALD_D000566 20 20 3 0.551  880T
ALD_D000567 20 20 3 0.551  880T  Have
CHALCO_A000280 20.00 20.00 2.00 0.389 660T
CHALCO_A000394 20 20 1.50/ 0.3
CHALCO_AOOO394 20 20 1.5 0.3 500
TF-40 20 20 0.90/1.00/1.50
TF-52 20 20 0.90/1.40/1.50
CHALCOGYC-1819 20 20 2.5 0.473 660T R2.0
TF-50 14 21 1.00/
HR60G-6F  20 21 1.3 0.269 500 Have
TF-193 8 22 1.2 0.179 500
TF-188 4.5 25 1 0.149 500
CHALCO_A000603 15 25 2 0.389 660T
CHALCO_A000743 15.00 25.00 1.80 0.345 660T Have
CHALCO_A001097 15 25 1.5 0.3 500
JNAT-29 20 25 1.5 0.34 660T
CHALCO_A000666 20 25 2.0 0.443 660T
ALD_D000400 25 25 3 0.692  880T  Have
ALD_D000568 25 25 1.6 0.404 660T
ALD_D000569 25 25 3 0.713  880T  Have
ALD_D002612 25 25 2 0.491 660T Have
CHD_A000013 25 25 2 0.497 660T
CHALCO_A000281 25 25 2 0.497 660T
CHALCO_A000355 25 25 3.00/ 0.713
CHALCO_A000984 25 25 1.5 0.381 660T
CHALCO_A001867 25 25 1.5 0.372 660T Have
CHALCO_AOOO355 25 25 3 0.713 660T
TF-153 25 25 0.8 0.209
TF-163 25 25 1.2 0.307
TF-58 25 25 1.50/
XSS-413 25 25 1.1 0.282 500T Have Angle R,But wall thickness minus tolerance
JT-508499 18 25 2 0.421 660T
XSS-413 25 25 1.1 0.282 500T R1.0
CHALCO_D006807 12.7 25.4 3.175 0.544 660T
CHALCO_D007554 12.70 25.40 3.05 0.527 660T
ALD_D000528 25.4 25.4 1.22 0.319 660T
CHALCO_D000047 25.4 25.4 3.05 0.734
CHALCO_D000234 25.4 25.4 1.65 0.424
CHALCO_D000235 25.4 25.4 3.18 0.76
CHALCO_D000835 25.40 25.40 3.18 0.728
CHALCO_D000847 25.4 25.4 1.57 0.405 660T
CHALCO_D001027 25.40 25.40 1.57 0.406
CHALCO_D001028 25.40 25.40 3.18 0.760
CHALCO_D002105 25.4 25.4 1.6 0.401 660T Have
CHALCO_D002819 25.4 25.4 1.4 0.354 660T Have
CHALCO_D004046 25.4 25.4 1.91 0.457 660T Have
CHALCO_D004198 25.4 25.4 1.27 0.32 660T Have
CHALCO_D004686 25.4 25.4 1.14 0.292 660T Have
CHALCO_D004978 25.4 25.4 1.02 0.268 500 Have
CHALCO_D007220 25.4 25.4 1.57 0.391 660T Have
CHALCO_D009300 25.4 25.4 1.24 0.325 660T
CHALCO_DOO0047 25.4 25.4 3.05 0.734
CHALCO_DOO0234 25.4 25.4 1.65 0.424
CHALCO_DOO0235 25.4 25.4 3.18 0.76
CHALCO_DOO0847 25.4 25.4 1.57 0.406
CHALCO_A000696 25.40 25.40 3.25 0.778  880T  6082-T6
CHALCO_A000860 25.4 25.4 1.63 0.417 660T
TF-02 25.4 25.4 0.80/0.90/1.0/1.05/ 1.10/1.20
CHALCO_D040134 25.40 25.40 1.00 0.264 500T
TF-74 16 26 1.10/
XSS-415 18 28 1.1 0.258 500T Have Angle R,But wall thickness minus tolerance
XSS-415 18 28 1.1 0.258 500T R1.0
CHALCO_D002024 28.58 28.58 1.88 0.524 660T Have
TF-177 8 30 0.6/1.2 0.119
CHALCO_A000988 10 30 1.5 0.3 660T
CCNZ-66 10.2 30 2 0.391 660T
CHALCO_A000290 15.00 30.00 2.00 0.443 660T
CHALCO_A001069 15 30 1.5 0.34 660T
CHALCO_AOOO290 15 30 2.0 0.443
TF-126 19.6 30 1.10/
CHALCO_A000270 20 30 2 0.497 660T
CHALCO_A000536 20 30 3 0.713 660T
CHALCO_A000675 20 30 1.5 0.381 660T
CHALCO_AOOO270 20 30 2.0 0.497
CHALCO_AOOO536 20 30 3.0 0.713
TF-41 20 30 1.00/1.40/1.50
XSS-411 20 30 1.2 0.307 660T Have Angle R,But wall thickness minus tolerance
XSS-412 20 30 1.1 0.282 500T Have Angle R,But wall thickness minus tolerance
CHALCO_A000593 25 30 2 0.551 660T
CHALCO_A000108 30 30 2 0.605  880T
CHALCO_A000282 30 30 1.5 0.462 660T
CHALCO_A000350 30 30 3.00/ 0.875
CHALCO_A000533 30 30 2 0.596  880T  Have
CHALCO_A000551 30 30 2 0.584  880T  Have
CHALCO_AOOO350 30 30 3 0.875  880T
TF-110 30 30 2.00/
CHD_A000225 30.00 30.00 1.50 0.460 660T Have
ALD_D004022 30 30 2 0.591 660T Have
XSS-410 30 30 1.2 0.372 660T Have Angle R,But wall thickness minus tolerance
CHD_A000267 30 30 4 1.123 1250
JT-504160 18 30 3 0.68 880T
YDKM-KL-41 24 30 2 0.54 660T
TF-215  23 30 2 0.529 660T
XSS-410 30 30 1.2 0.372 660T R1.0
XSS-411 20 30 1.2 0.307 660T R1.0
XSS-412 20 30 1.1 0.282 500T R1.0
QL-877 18 30 1.5 0.365 660T
CHALCO_D000048 31.75 31.75 3.05 0.943
CHALCO_D000236 31.75 31.75 3.18 0.978
CHALCO_D004463 31.75 31.75 4.76 1.388 1250T Have
CHALCO_DOO0048 31.75 31.75 3.05 0.943
CHALCO_DOO0236 31.75 31.75 3.18 0.978
CHALCO_A000840 31.75 31.75 3.25 1.001  880T
GRMQ-7026 20 32 1.2 0.321 660T
TF-48 25 32 2.00/3.00
CHALCOGYC-794 25 32 2 0.572  880T
ALD_D000398 32 32 3 0.94  880T
ALD_D000529 32 32 2 0.648 660T
ALD_D000570 32 32 3 0.94 1250T
TF-194 32 32 5 1.458 1250T
CHALCOGYC-795 32 32 1.5 0.494 660T
TF-100 25 33 1.20/1.40
CHALCO_A000756 20 34 3 0.778  880T
YDKM-SM-64 31 34 3 0.956 880
CHALCO_A000530 34 34 3 1.004  880T
CHALCO_A000739 34 34 2 0.691  880T
CHD_A000224 25 35 1.5 0.462 660T
TF-189 5 35 1.2 0.244 500
CHALCO_A000822 25 35 2 0.605  880T
CHALCO_A000459 35.00 35.00 2.00 0.713  880T
CHALCO_A000607 35 35 3 1.037 1250T
ALD_D001105 21.6 35.4 2 0.572 660T Have
CHALCOGYC-609 35.5 35.5 2 0.696  880T
LYL-117 15 37 2 0.5 660T R3.0
CCNZ-55 35 37 4.0 1.382 1250 Have
SYLM-22 19.6 37.6 2 0.575 600T
ALD_D000586 25 38 1.5 0.47  880T  Have
ALD_D000615 25 38 1.5 0.47 660T Have
ALD_D002611 25.00 38.00 1.50 0.470 660T Have
ALD_D003696 25 38 2 0.637 880T
D-AE0127X 25 38 1.2 0.393 660T
TF-165 25 38 1.6 0.51
ALD_D003981 25.00 38.00 1.45 0.455 660 OutsideR3.0
ALS_D000027 38 38 1.6 0.629  880T
ALS_D000028 38 38 2 0.778  880T
D-AE0106X 38 38 1.2 0.477 660T
TF-164 38 38 1.6 0.627
ALD_D004077 25 38 2.5 0.763 880T Inside R0.5,Outside R3
CHALCOGYC-2063 25 38 3.0 0.875 880T Inside R2,Outside R3
ALD_D001141 17.45 38.1 3.18 0.845  880T
CHALCO_D007152 17.53 38.1 1.14 0.319 660T Have
CHALCO_D004778 19.05 38.1 1.02 0.288 660T Have
CHALCO_D004781 19.05 38.1 3.18 0.847
TF-169 19.1 38.1 1 0.298
CHALCO_D000831 25.4 38.1 3.18 0.978
CHALCO_D002818 25.4 38.1 1.4 0.437
CHALCO_D002820 25.4 38.1 1.02 0.321 660T Have
CHALCO_D004035 25.4 38.1 1.02 0.322 660T Have
CHALCO_D004328 25.4 38.1 1.02 0.337 660T
CHALCO_D004980 25.4 38.1 1.09 0.362 660T Have
CHALCO_D006311 25.40 38.10 1.02 0.337 660T Have
TF-03 25.4 38.1 0.90/1.0/1.02/1.15/ 1.20/2.50
CHALCO_D007068 25.40 38.10 1.57 0.507 660T Have
CHALCO_D000028 38.10 38.10 1.60 0.612
CHALCO_D000049 38.1 38.1 3.05 1.152
CHALCO_D000113 38.1 38.1 1.27 0.505
CHALCO_D000237 38.1 38.1 3.17 1.197 1250T
CHALCO_D000834 38.10 38.10 3.56 1.326
CHALCO_D001235 38.1 38.1 1.57 0.621  880T  Have
CHALCO_D001327 38.1 38.1 1.65 0.65
CHALCO_D002821 38.1 38.1 3.18 1.18 1250T Have
CHALCO_D004199 38.1 38.1 1.14 0.443 660T Have
CHALCO_D004329 38.1 38.1 1.02 0.407 660T
CHALCO_D004688 38.10 38.10 1.40 0.546
CHALCO_D004689 38.1 38.1 1.14 0.462 660T Have
CHALCO_D004974 38.1 38.1 1.14 0.456 660T Have
CHALCO_D005267 38.1 38.1 3.18 1.201 1250T Have
CHALCO_D006306 38.10 38.10 1.02 0.407 660T Have
CHALCO_D007070 38.1 38.1 2.29 0.86  880T  Have
CHALCO_D009510 38.1 38.1 4.78 1.719 1250T Have
CHALCO_DOO0049 38.1 38.1 3.05 1.152
CHALCO_DOO0237 38.1 38.1 3.18 1.196
CHALCO_DOO1327 38.1 38.1 1.65 0.65
CHALCO_DOO4329 38.1 38.1 1.02 0.408
CHALCO_A000697 38.1 38.1 3.25 1.198 1250T
YDKM-SY-38 14.5 38.5 2 0.529 660T
CCNZ-67 10.2 40 2 0.499 660T
CHALCO_A000892 12 40 2 1.685 1800
CHALCOGYC-1312 14 40 1.6 0.439 660
CHALCO_A000720 15 40 2 0.551 660T
CHALCO_A000104 20 40 2 0.605 660T
CHALCO_A000364 20 40 3.0 0.875
CHALCO_A000508 20 40 2.5 0.742  880T
CHALCO_A000891 20 40 4 1.123 1250T
CHALCO_A00891 20 40 4 1.123
CHALCO_AOOO104 20 40 2.0 0.605
CHALCO_AOOO361 20.00 40.00 2.00 0.596  880T  Have
CHALCO_AOOO364 20 40 3 0.875  880T
CHALCO_AOOO508 20 40 2.5 0.742
TF-75 20 40 0.80/
YDKM-TF-02 23 40 2 0.637  880T
LNJH-10 24 40 2.5 0.785 880T Have
CHALCO_A000645 25 40 2 0.659  880T
CHALCOGYC-1131E 25 40 3 0.956 880
CHALCOGYC-1192 25 40 4.0 1.231 1250
DC00001183G00 30 40 2 0.713 1250T
LXC-00-712 30 40 3 1.035 880 Have
CHALCO_A000271 30 40 3 1.037  880T
CHALCO_A000365 30 40 2.0 0.713
CHALCO_A000420 30 40 4 1.399 1250T
CHALCO_A000847 30 40 2.5 0.878  880T
CHALCO_AOOO271 30 40 3.0 1.037
CHALCO_AOOO365 30 40 2 0.713  880T
CHALCO_AOOO420 30 40 4.0 1.339
ALD_D000571 40 40 3 1.179 1250T Have
ALD_D000616 40 40 3 1.199 1250T
ALD_D001136 40 40 1.6 0.664  880T
LXC-00-711 40 40 3.0 1.197 1250
CHALCO_A000261 40 40 3 1.199 1250T
CHALCO_A000283 40 40 2 0.821  880T
CHALCO_A000284 40 40 4 1.555 1250T
CHALCO_A000351 40 40 2.50/ 1.013
